Area of Expertise

Odor Control Systems

Our odor control systems are pre-engineered and factory-assembled, making them easy to install at sewage pump stations and wastewater treatment plants. This simplicity helps lower installation costs and speeds up delivery.



Biological Odor Control Systems

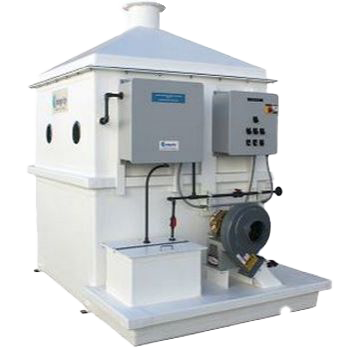

The I-BOx® Biological Odor Control System uses a two-stage process with a biological stage to remove 99% of the Hydrogen Sulfide (H2S), followed by an activated carbon polishing stage to remove residual H2S and organic odors. Standard models are available to treat up to 5,000 cfm (8500 m3/h) of odorous air.



img-bio-odor-control_1

Series: Low Range

Treatment Capacity:

Up to 250 cfm (425 m3/h) of odorous air

Learn more

Series: 7000

Treatment Capacity:

Up to 3,500 cfm (6,000 m3/h) of odorous air

Learn more

Series: 8000

Treatment Capacity:

Up to 5,000 cfm (8,500 m3/h) of odorous air

Learn more

Carbon Adsorber Odor Control Systems

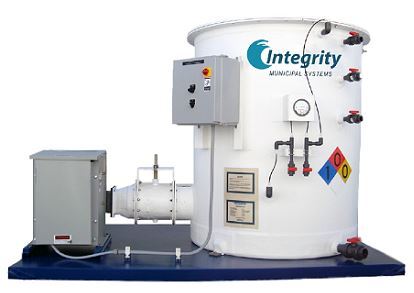

The MCS carbon adsorber odor control systems are single stage, skid-mounted, dry media systems, designed for relatively lower odor levels and organic odors. The media may be virgin activated carbon or any of a number of specialty catalytic carbon media.

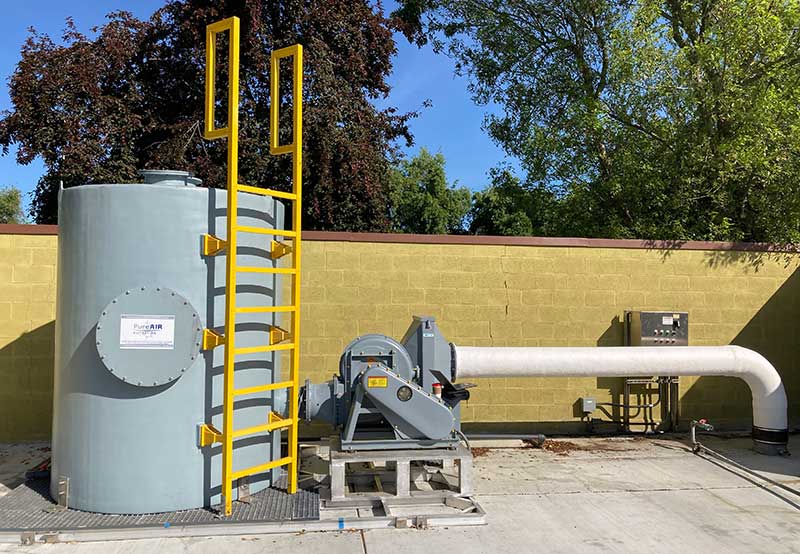

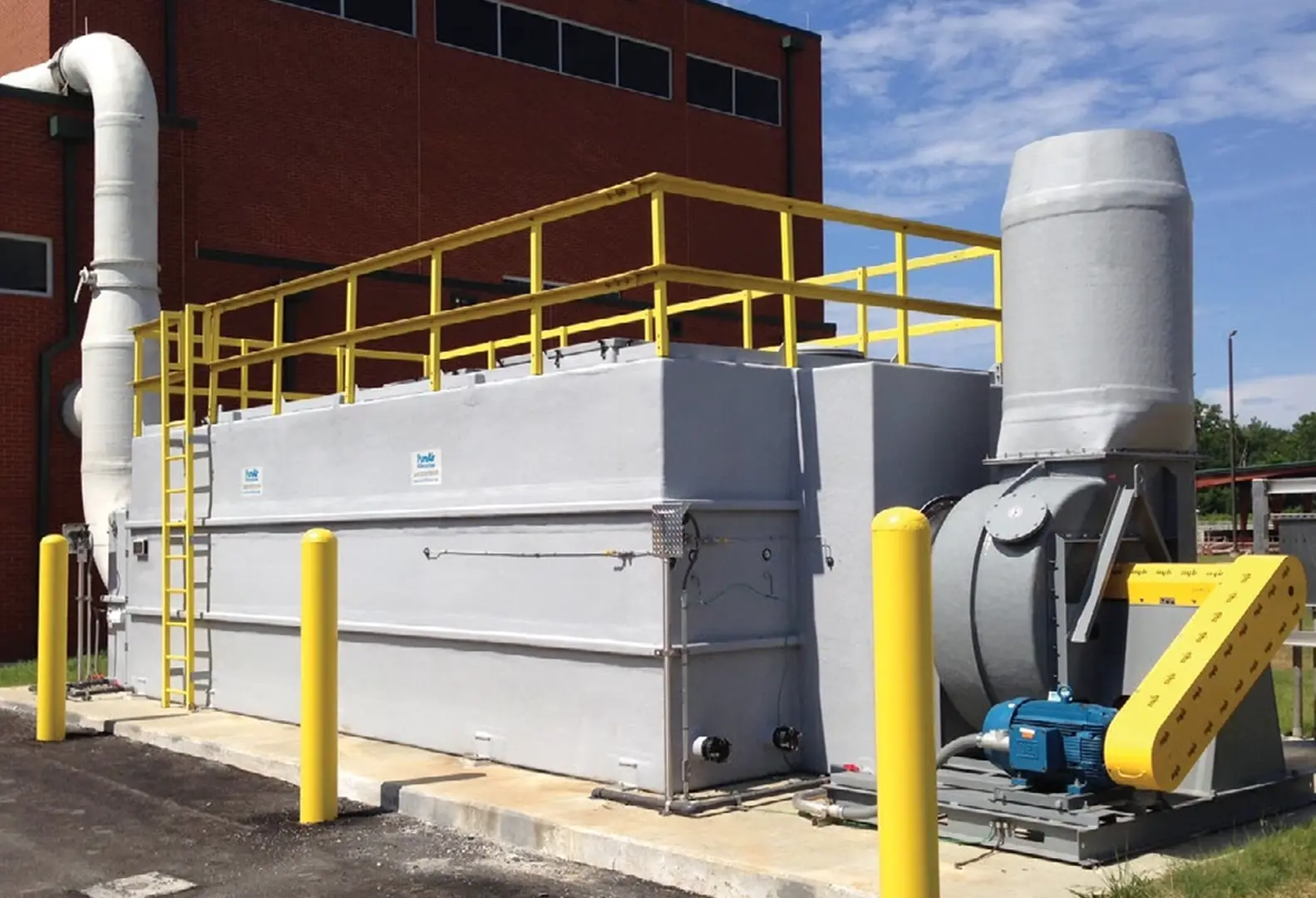

The BCS activated carbon odor control systems are larger bulk media systems, designed for higher air flow rates. The media may be virgin activated carbon or any of a number of specialty catalytic carbon media.

img-carbon-odor-control_1

Series: MCS

Treatment Capacity:

Up to 1,250 cfm (2,120 m3/h) of odorous air

Learn more

Series: BCS

Treatment Capacity:

Single bed system: Up to 6,800 cfm (11,600 m3/h)
Dual bed system: Up to 20,000 cfm (34,000 m3/h)

Learn more

Carbon Adsorber Odor Control Systems Available for Rent

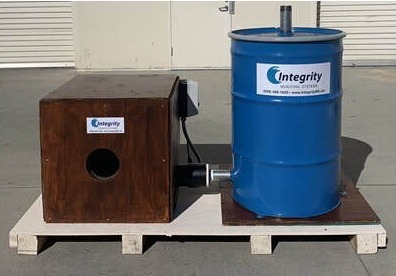

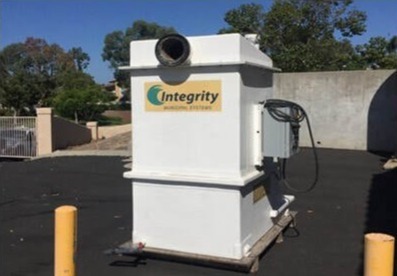

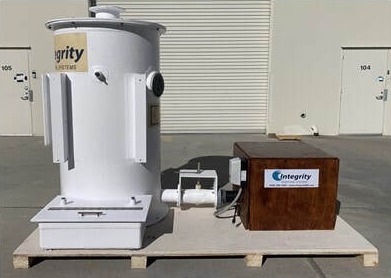

​Temporary carbon adsorber odor control systems are available for rental and are ideal for handling seasonal or temporary odors, addressing urgent odor complaints, or for pilot plant testing. The media may be virgin activated carbon, high H2S capacity carbon media, or any of several specialty catalytic carbon media.

3-systems-in-one_orig
3-systems-in-one_orig-1
3-systems-in-one_orig-2-1

Available Rents:

Treatment Capacity

100-130 cfm

300-350 cfm

450-550 cfm

650 cfm





Power Requirements

110V/1ph/60Hz

110V/1ph/60Hz

480V/3ph/60Hz

110V/1ph/60Hz



Chemical Scrubber Odor Control Systems

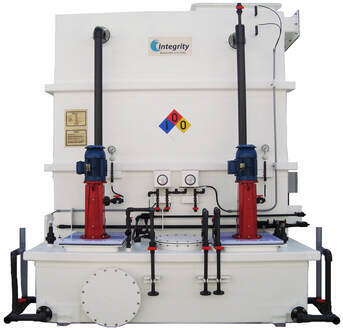

IMS' Packaged Chemical Scrubber is a multi-stage high efficiency scrubber capable of promoting different chemical reactions in each stage and targeting a range of different compounds found in municipal Wastewater Treatment Plants and Pump Stations. The system is designed tobe compact and low profile, enabling indoor or outdoor installation. IMS' chemical scrubber system is completely factory assembled for ease of installation treating airflow capacities up to 40,000 m3/h in a single system.
​
IMS' Packaged Chemical Scrubber is a "once-through", two-stage absorption system consisting of two vertical counter-current gas absorption sections.

cps-white-background
