Miniblend™

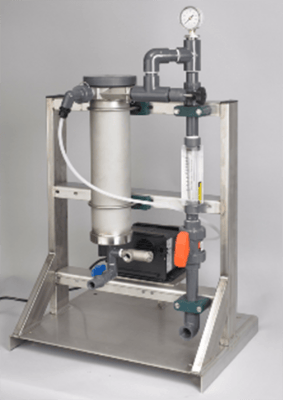

Miniblend 700x495 100dpi

Effective, Reliable, and Portable

Miniblend™ liquid polymer blending systems are proven to be the most effective and reliable polymer activation technology. Miniblend™ has easy-to-use controls and utilizes hydroaction concentric mixing chambers to activate simple-to-blend and difficult-to-blend polymers.

Miniblend™ is lightweight and portable and is available as a skid mounted or remote-mounted neat polymer metering pump.

Features

  • Manual or automatic pump speed control
  • Choice of diaphragm, peristaltic or remote-mounted neat polymer metering pump
  • 304 stainless-steel frame and mixing chamber

Benefits

  • Lightweight and portable
  • Reliable, mixing chamber
  • Lowest operating cost
  • Most effective and reliable polymer feeders in the industry
Product Details



Lightweight and portable, Miniblend™ liquid polymer blending systems are proven to be the most effective and reliable polymer activation technology. Hydroaction technology follows the science of polymer activation. Two-stage mixing with the highest energy applied first at the moment of initial wetting (MIOW) followed by a "quiescent" zone allowing for more gentle activation as polymer science dictates.

Options:

  • Choice of skid mounted or remote-mounted neat polymer metering pump.

  • Explosion-proof Class 1 Div. 1 systems

Water Supply Pressure: Water supply must be able to provide the maximum flow rate at 2.4 bar (35 psig) greater than the pressure at feeder discharge

Maximum Operating Pressure: • 6.9 bar (100 psig)

Dimensions: 475 mm x 610 mm x 1016 mm (18 in x 24 in x 40 in)

Weight: 45 kg (100 lbs)

Power Equipment: 120 VAC, 0.6 kW (5 Amp)

Accessories: Numerous pump, control and instrument options are available.
